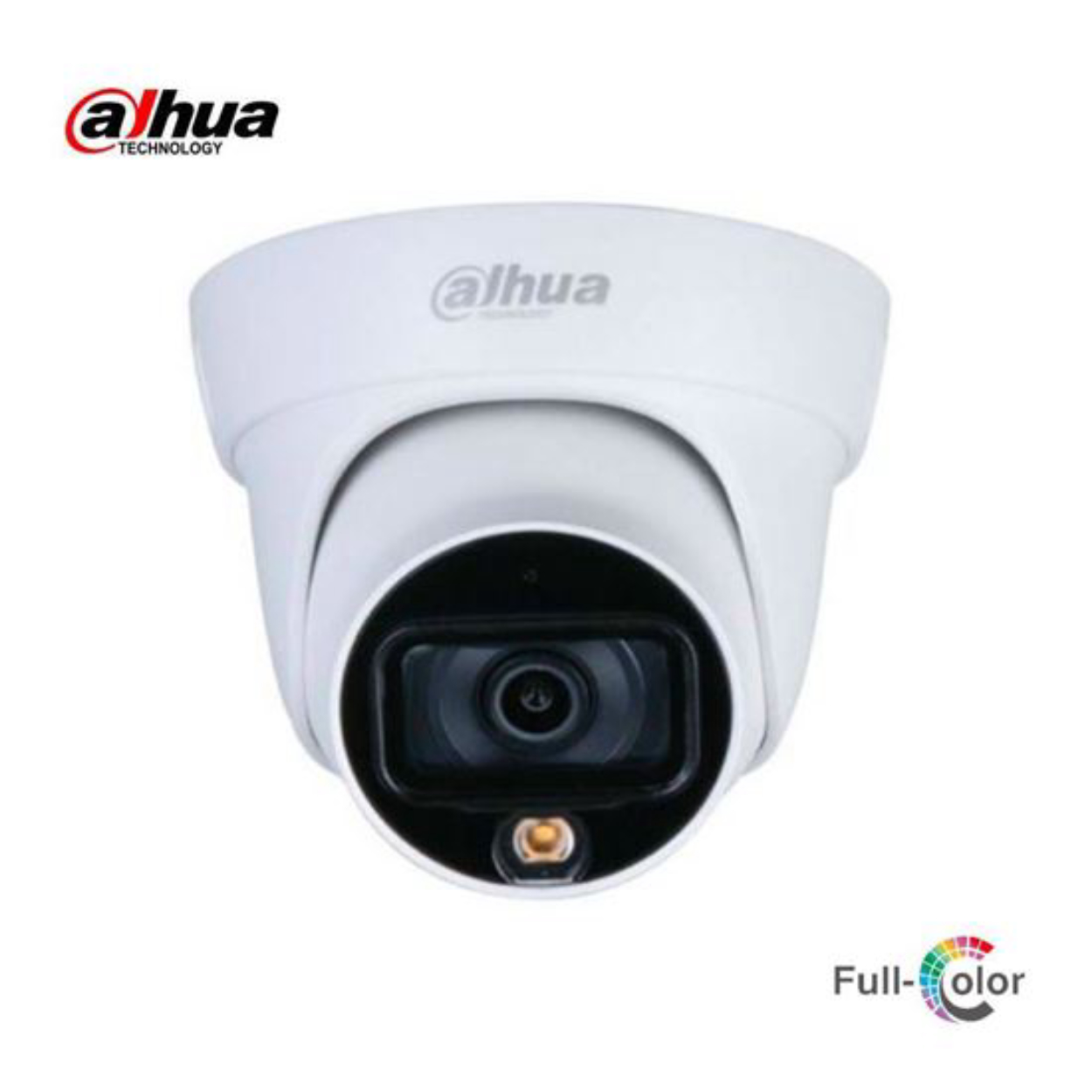

DAHUA DH-HACHDW1209TLQP-LED ( SES YOK )

Camera

Image Sensor

1/2.8 inch CMOS

Effective Pixels

1920 (H) × 1080 (V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.01Lux/F1.6, 0Lux white light on

Illumination Distance

Distance up to 20 m (65.61 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°-78
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm ;3.6 mm

Max. Aperture

F1.6 ;F1.6

Field of View

2.8 mm: 126.2° × 106° × 56.5°

(diagonal × horizontal × vertical);
3.6 mm: 103.6° × 86.9° × 46.3°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft);
3.6 mm: 1.2 m (3.94 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.6 ft)

15.4 m (50.5 ft)

7.7 m

(26.3 ft)

3.9 m

(12.8 ft)

3.6 mm

55.2 m (181.1 ft)

22.1 m (72.5 ft)

11.0 m (36.1 ft)

5.5 m

(18.0 ft)

Video

Frame Rate

CVI:
PAL: 1080P@25fps; 720P@25fps;
NTSC: 1080P@30fps; 720P@30fps;
AHD:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
TVI:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080P (1920 × 1080); 720P (1280× 720); 960H (960 × 576/960 × 480)

BLC

BLC/WDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Interface

N/A

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.0W (12V DC, White Light on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Inner core: metal + plastic
Cover: plastic
Pedestal: plastic

Camera Dimensions

?97.1 mm × 91.4 mm (?3.82" × 3.6")

Net Weight

0.21 Kg (0.46 lb)

Gross Weight

0.28 Kg (0.62 lb)
